BASIC CHARACTERISTICS
- premium aluminum profiled profiles
- front profile with high strength double wall
- the front profile has an integrated gutter for the rain drain through the side of the curtain
- the supporting tube of the curtain 40x40x2mm (zinc)
- TUV certificate
- stainless steel screws
- maximum width of unidirectional tents (without joints) up to 700 cm
- maximum extensibility to 400 cm
- possibility of controlling by electric motor
- possibility of remote control
- the ability to mount wind and sun sensors
WIDTH:
- up to 650 cm with 2 hinged hands
- up to 700 cm with 3 hinges
- up to 1300 cm with 4 hinges
- up to 1950 cm with 6 hinges
Extensibility: 150/200/250/300/350/400 cm
Construction color: white (Ral 9016)
Tarpaulin operation: using a handle / electric motor

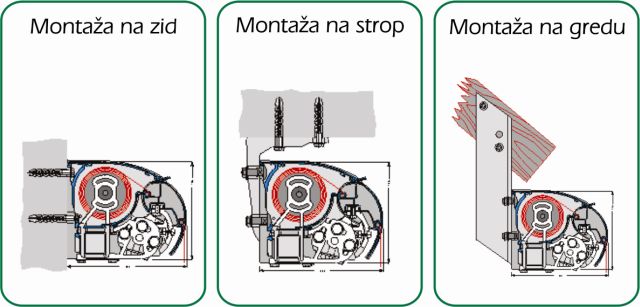

INSTALLATION
BRACKET PROFILE
- provides a firm and secure connection between the hinged arm and the front profile
- Easy adjustment of the front profile

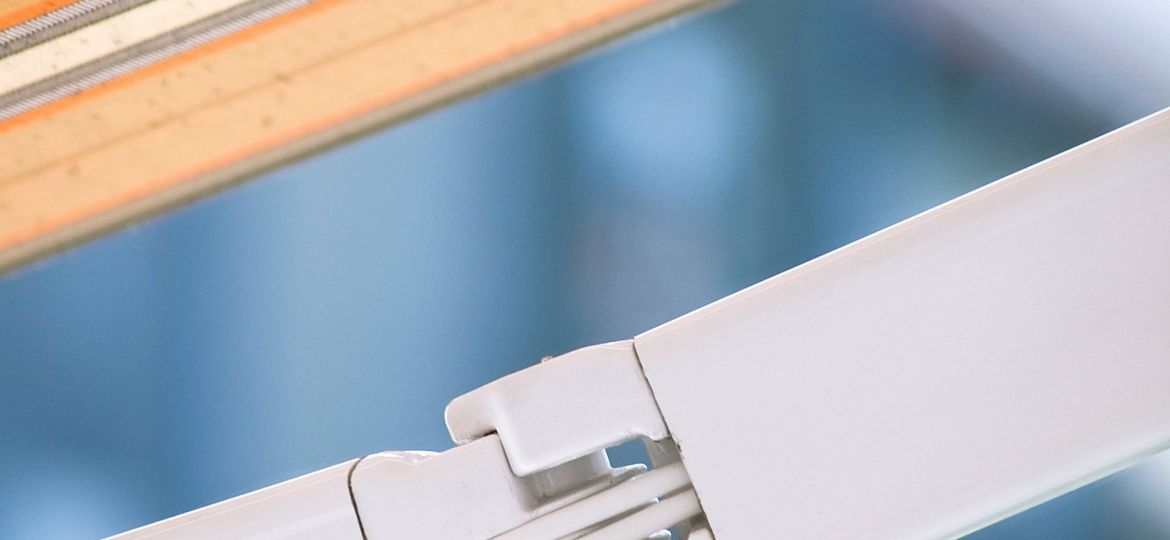

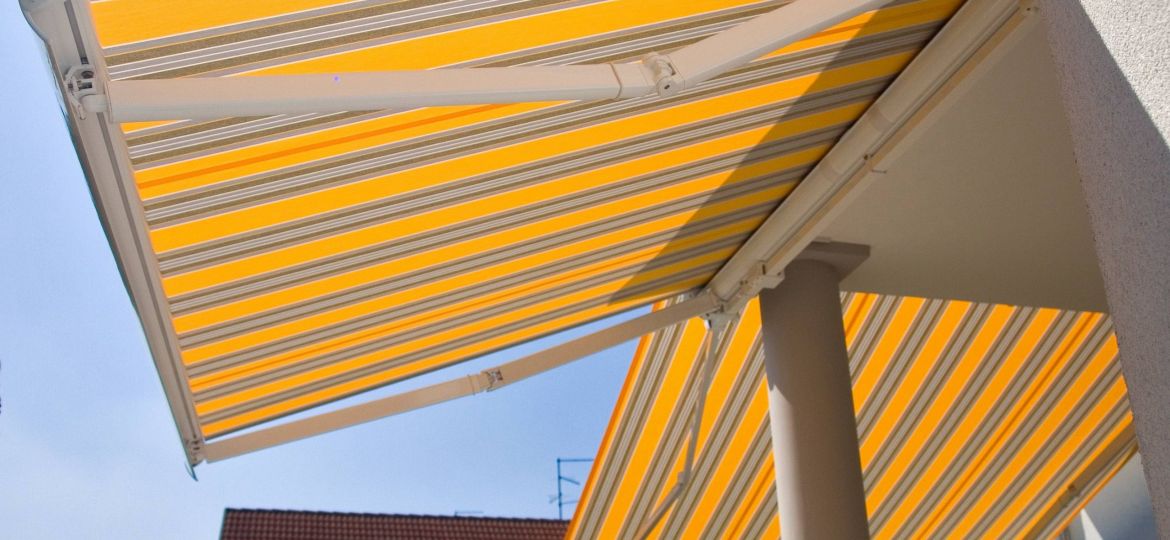

MIDDLE HINGES
- is connected with two extra strong steel cables wrapped in plastic protection to prevent accumulation
HINGES CARRIER
- high strenght aluminum alloy
- simply adjust the tilt angle of the curtain
canvas catalog
- a selection from our collection of over 50 different designs
- 100% polyacrylic impregnated canvas creates protection and waterproofness and prevents impurities from remaining on the surface of canvas
CLICK TO DOWNLOAD THE CATALOGUE

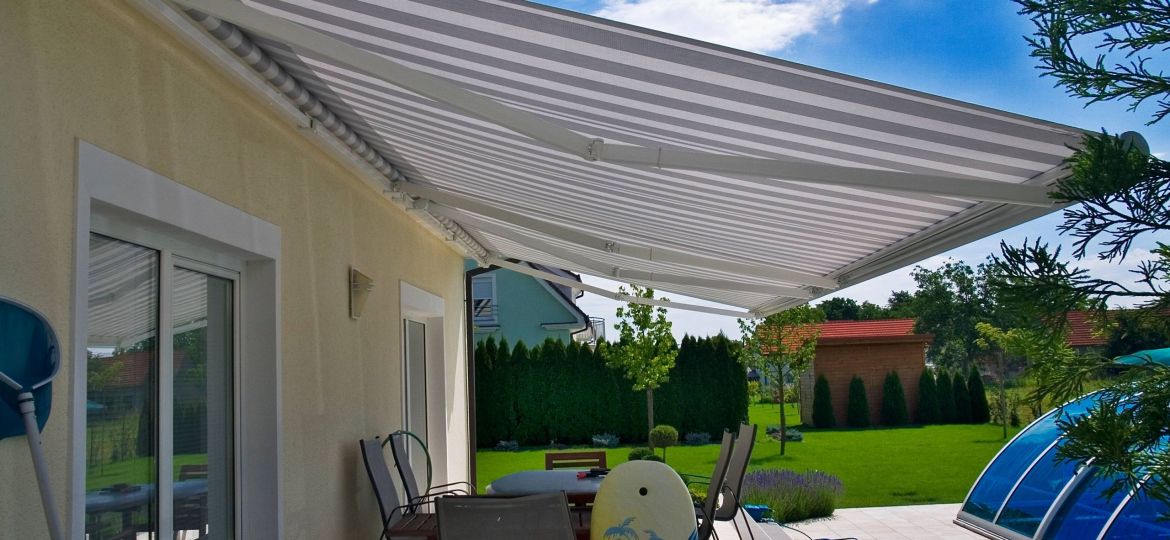

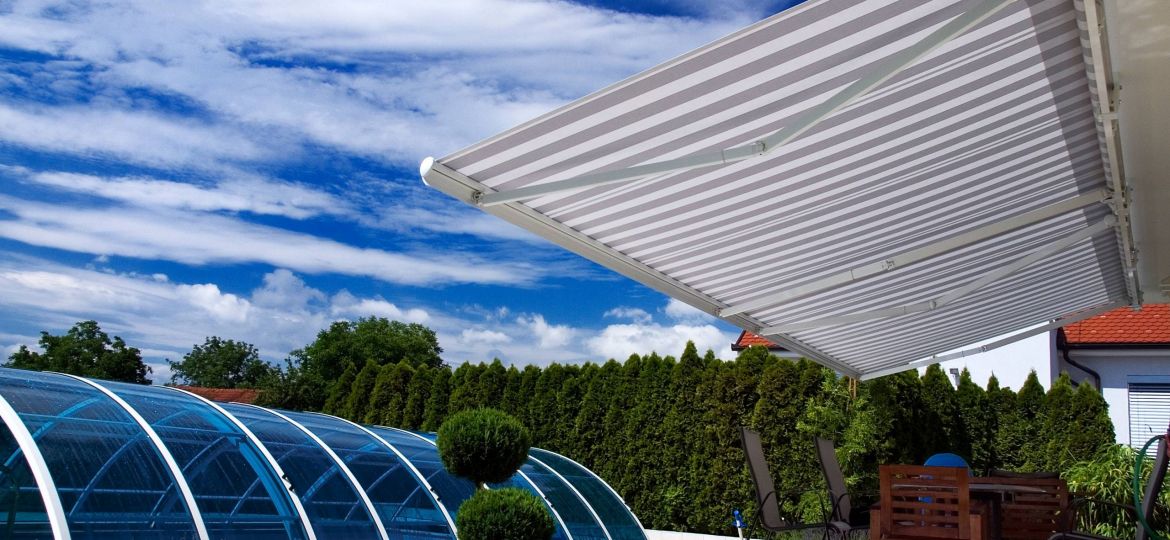

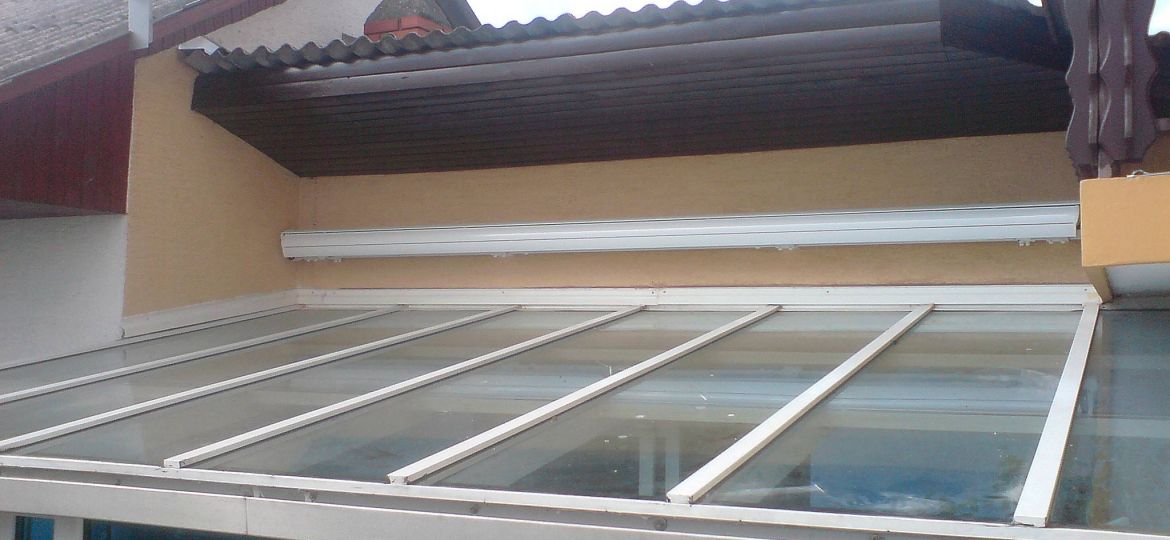

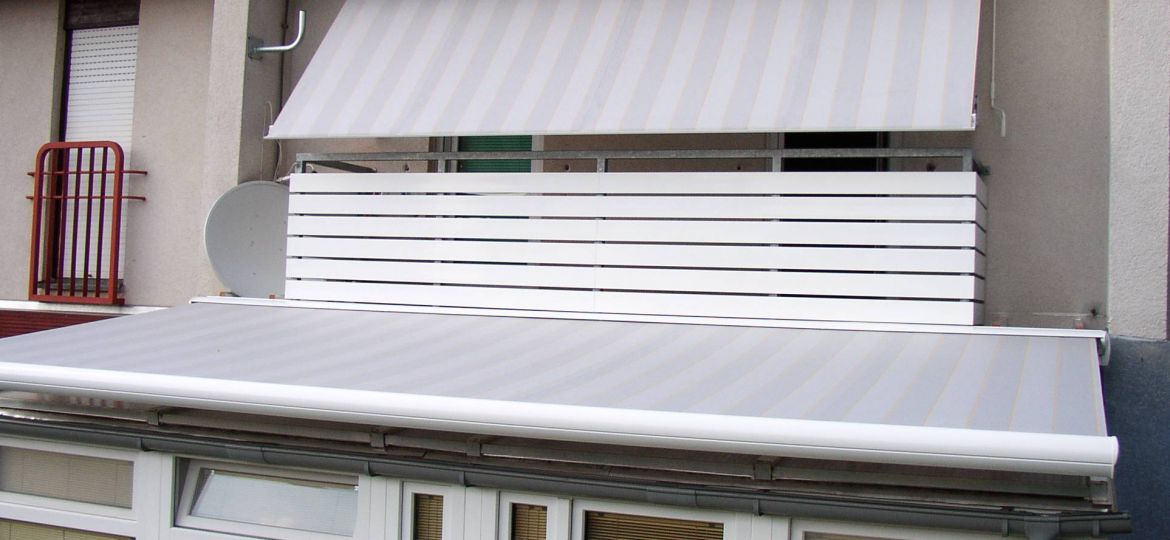

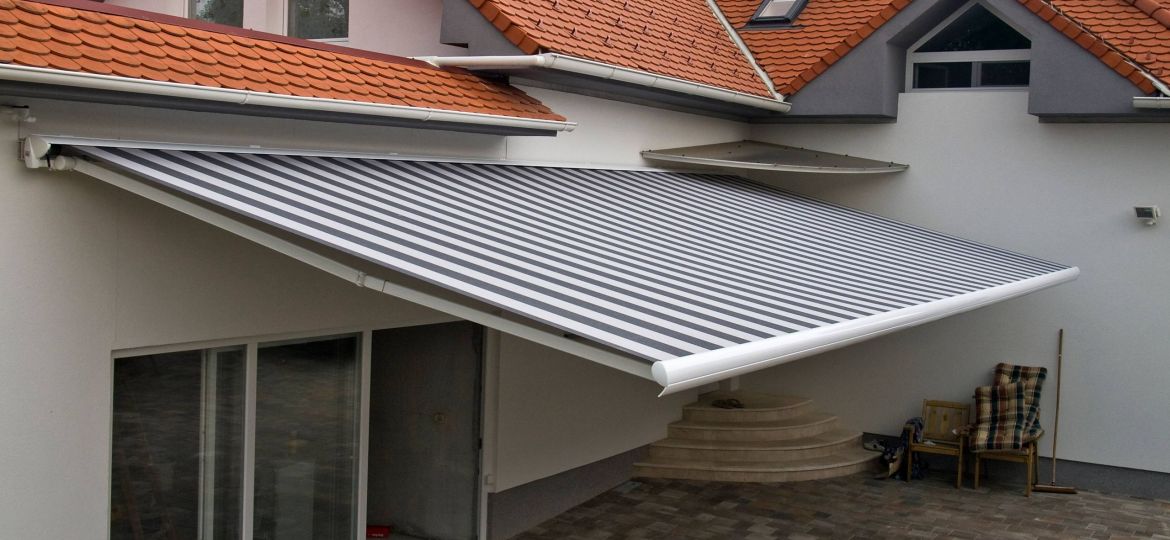

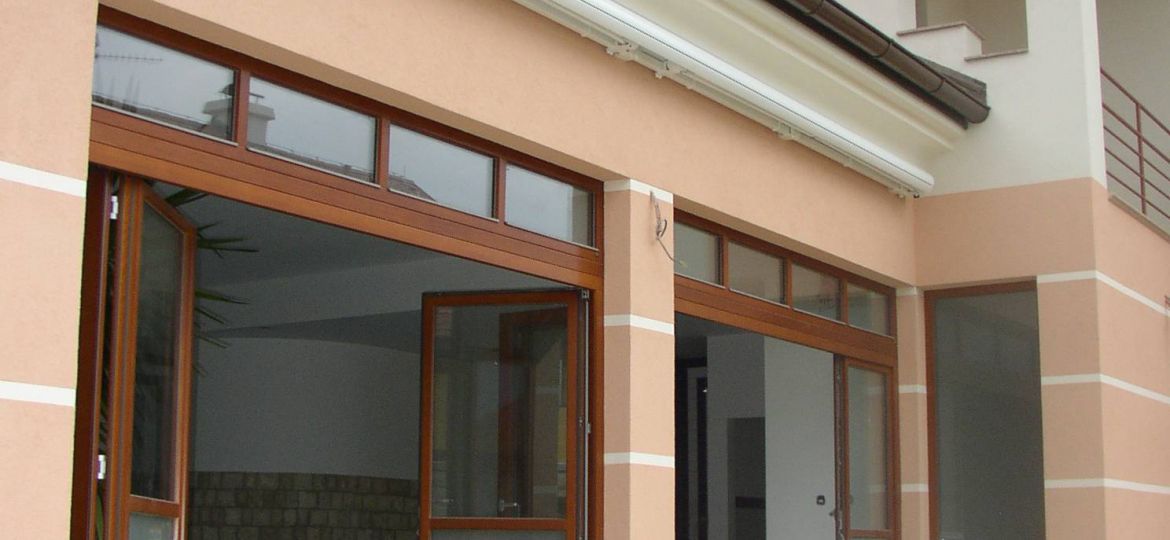

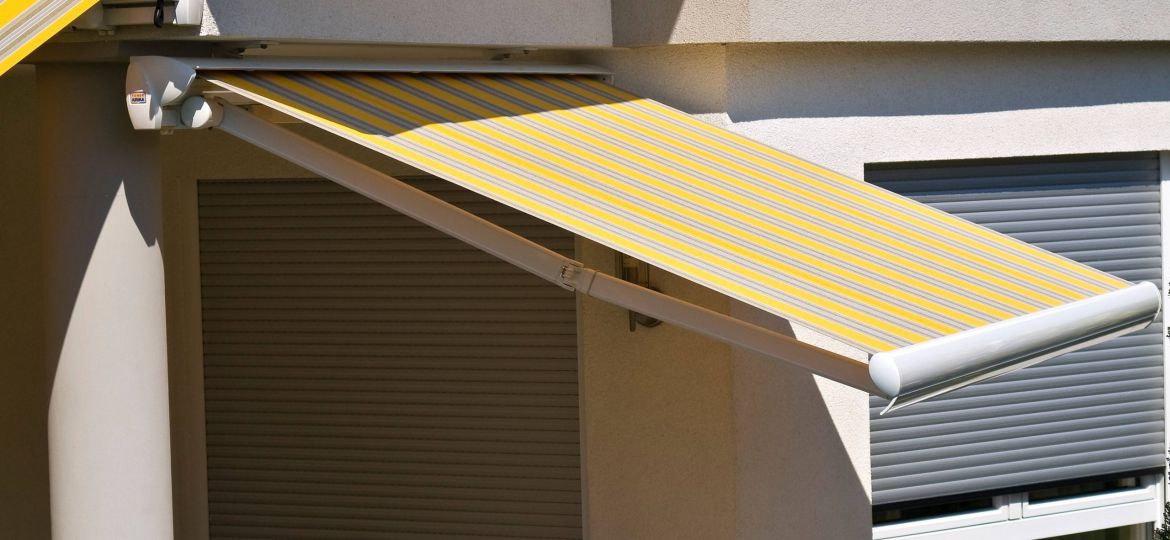

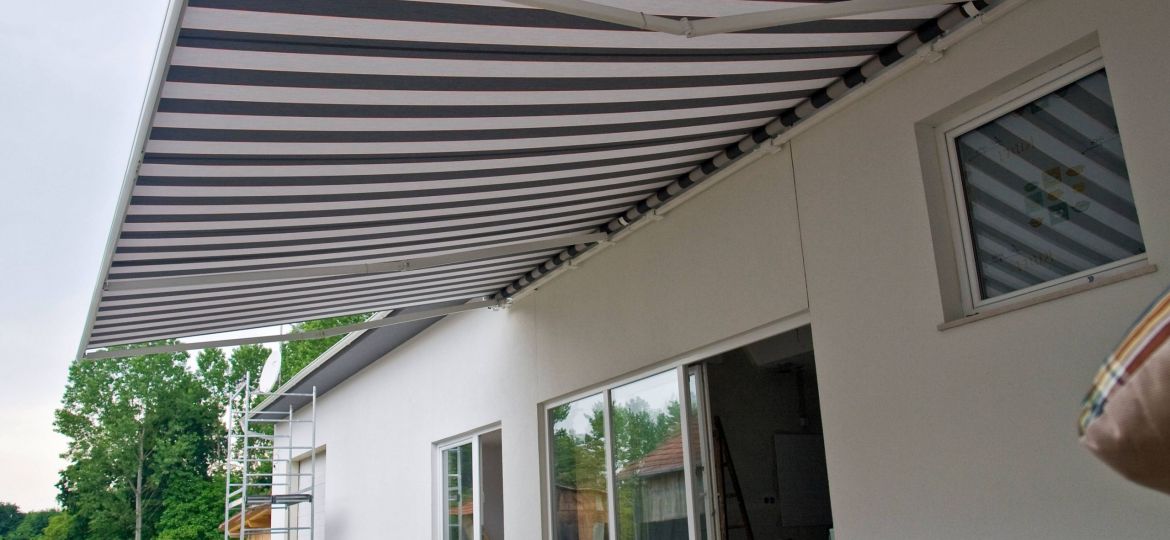

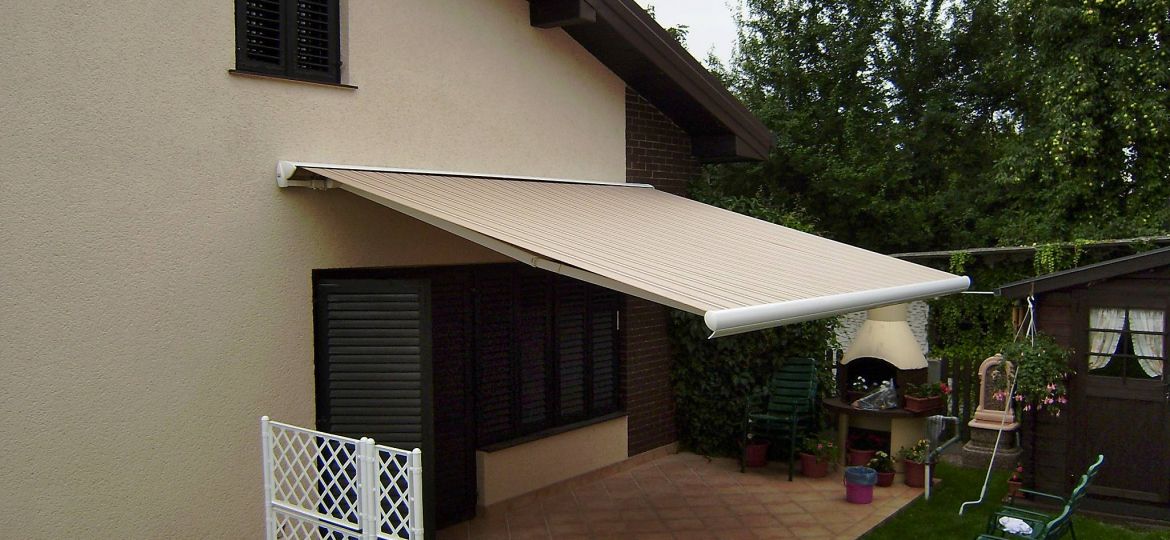

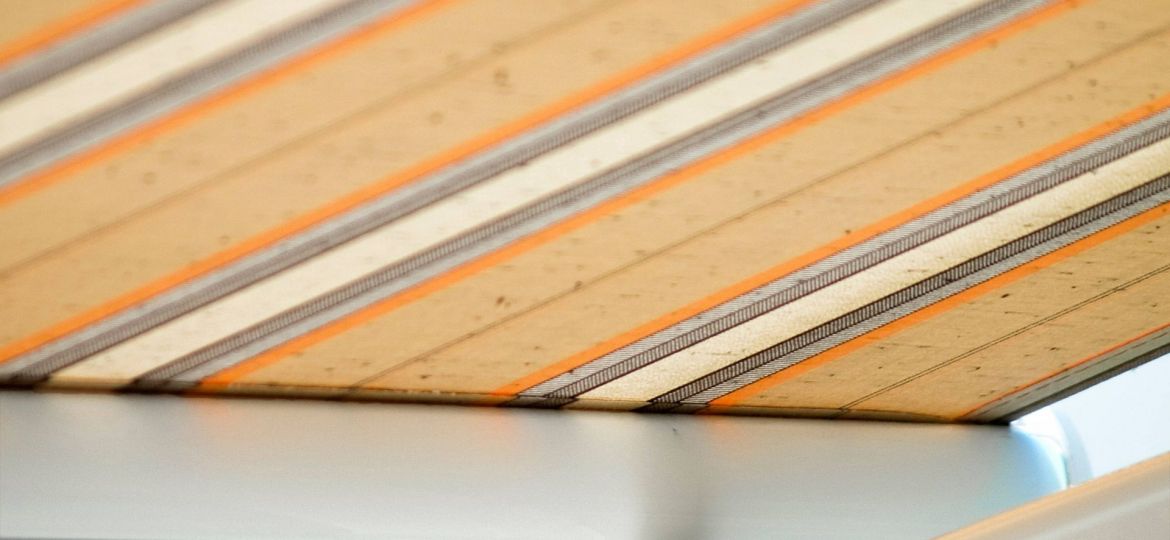

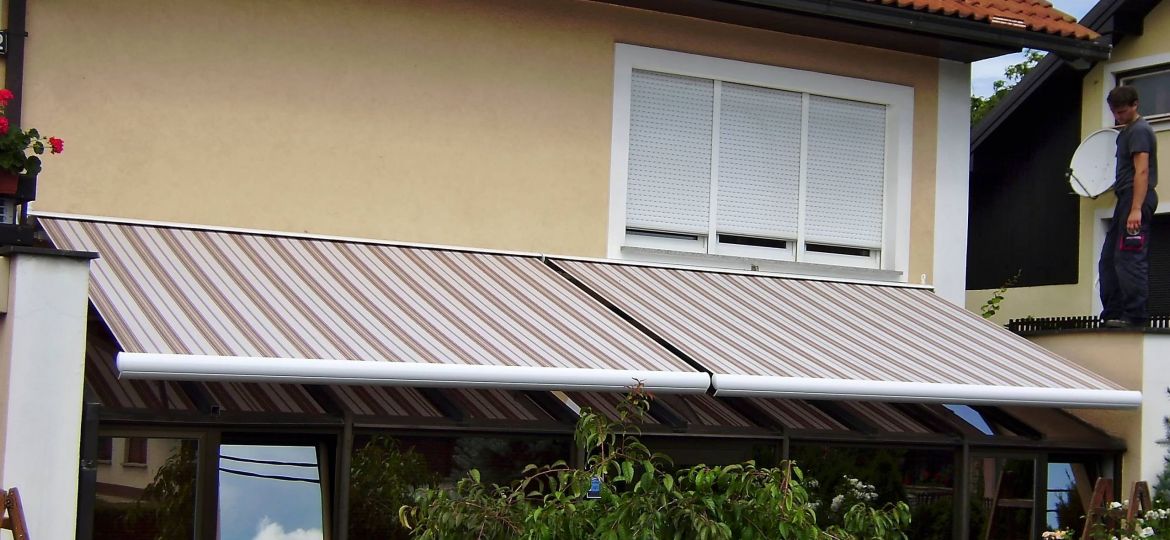

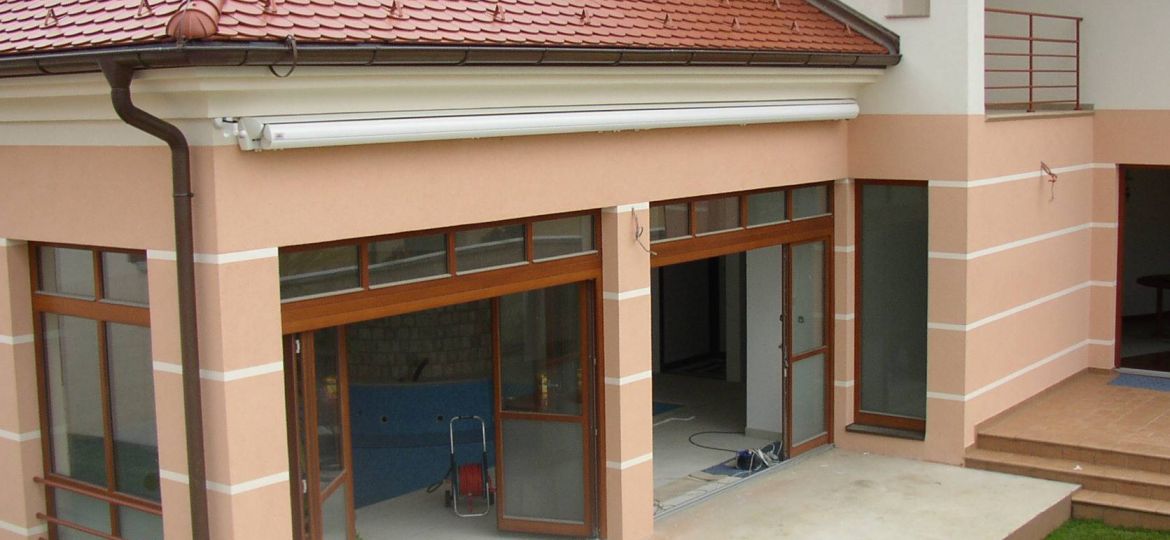

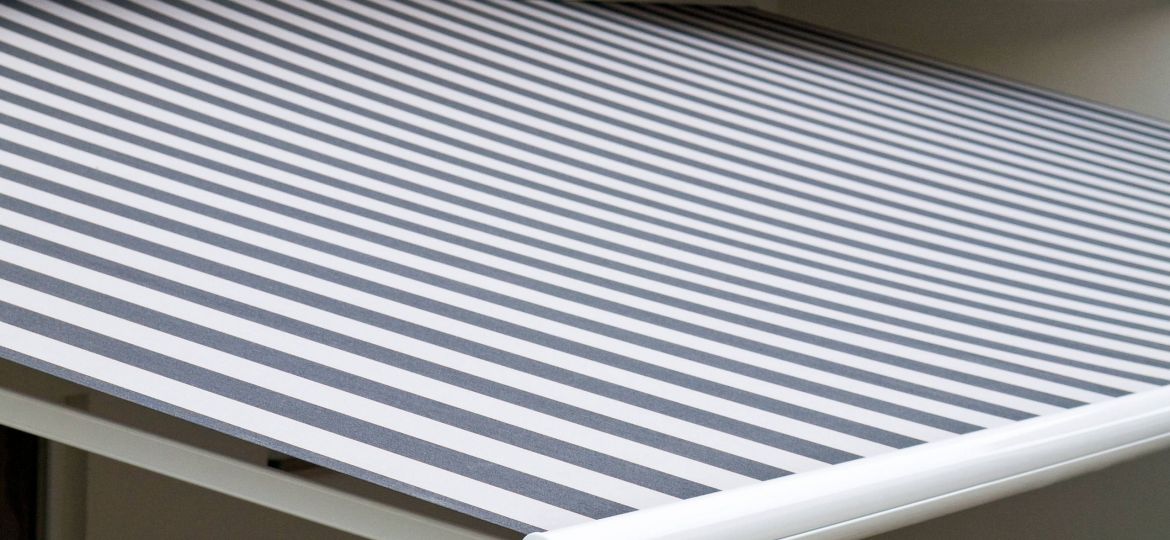

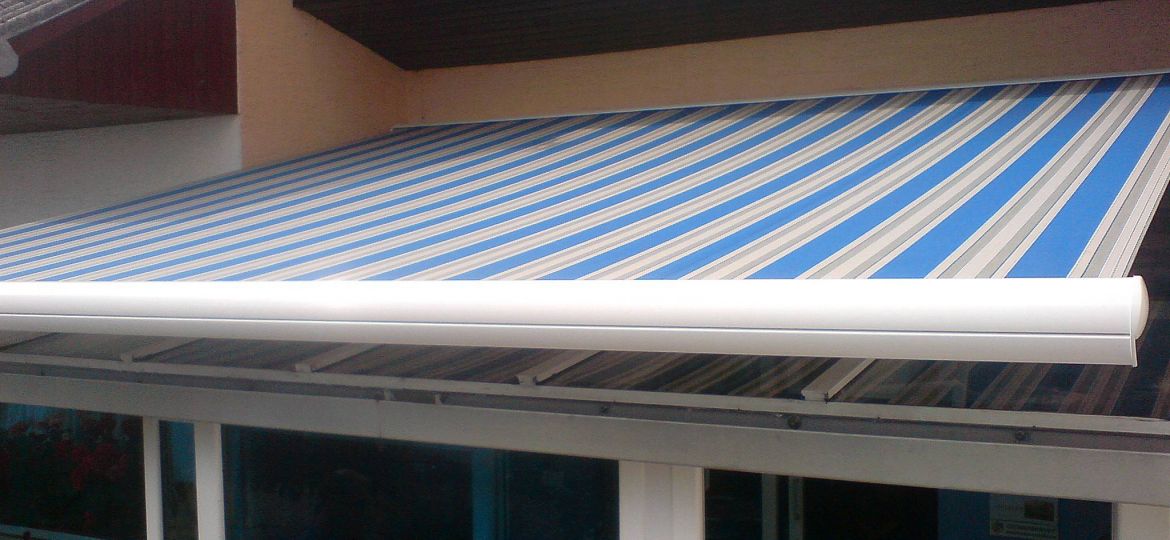

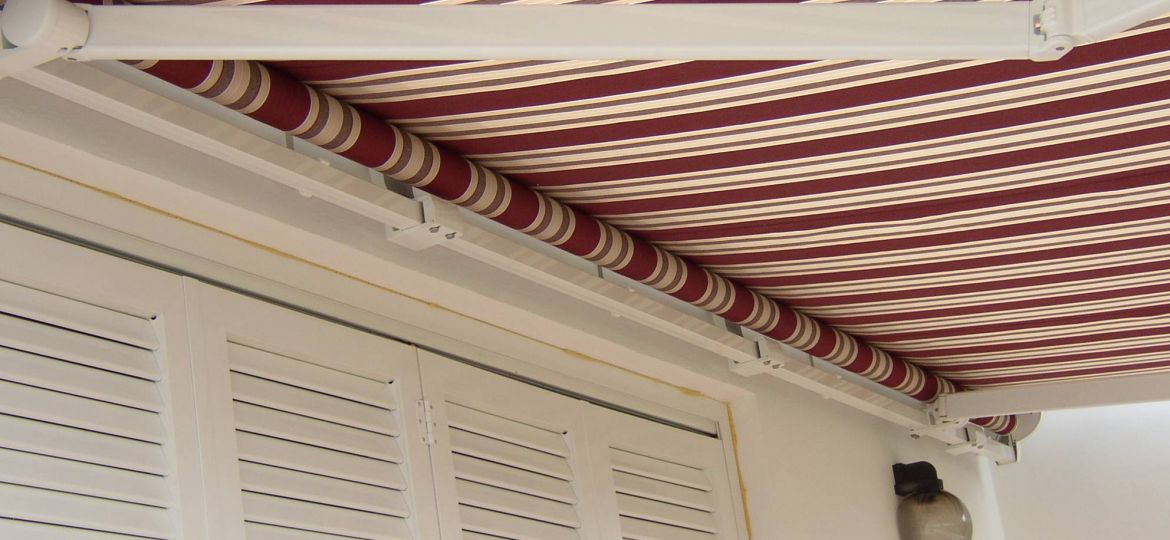

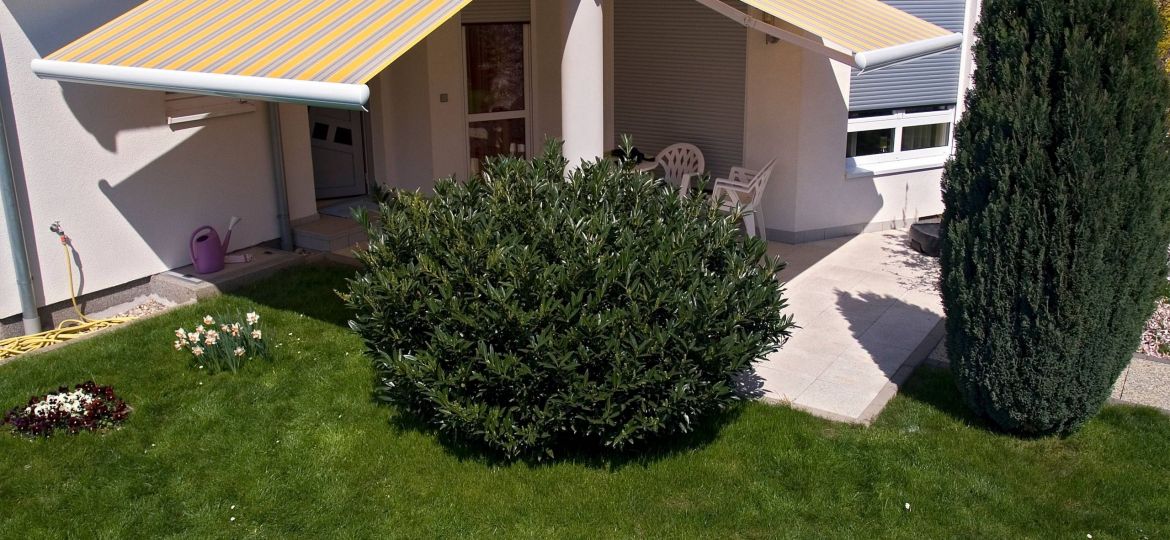

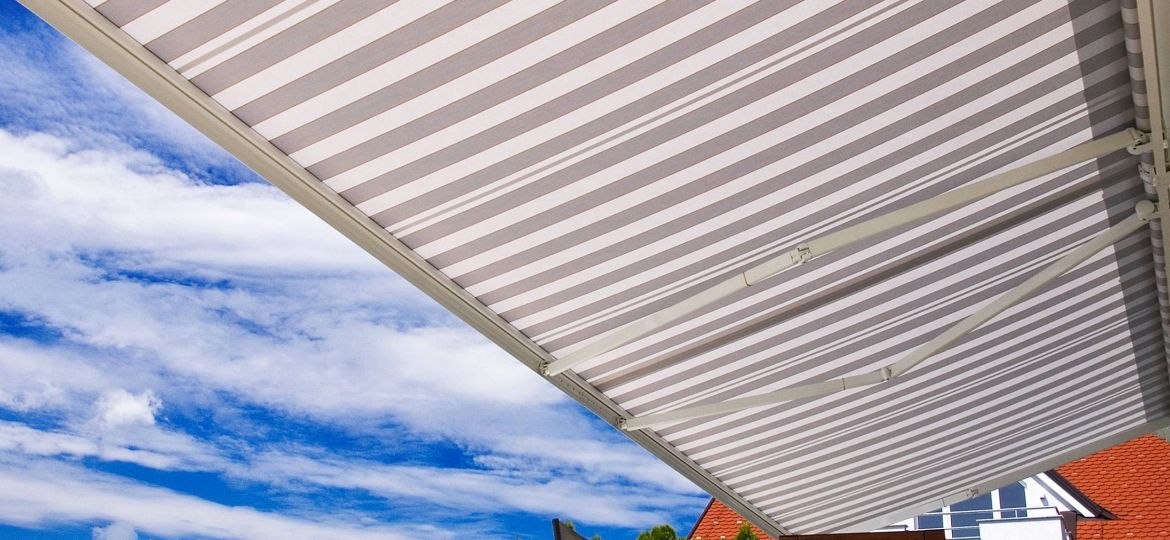

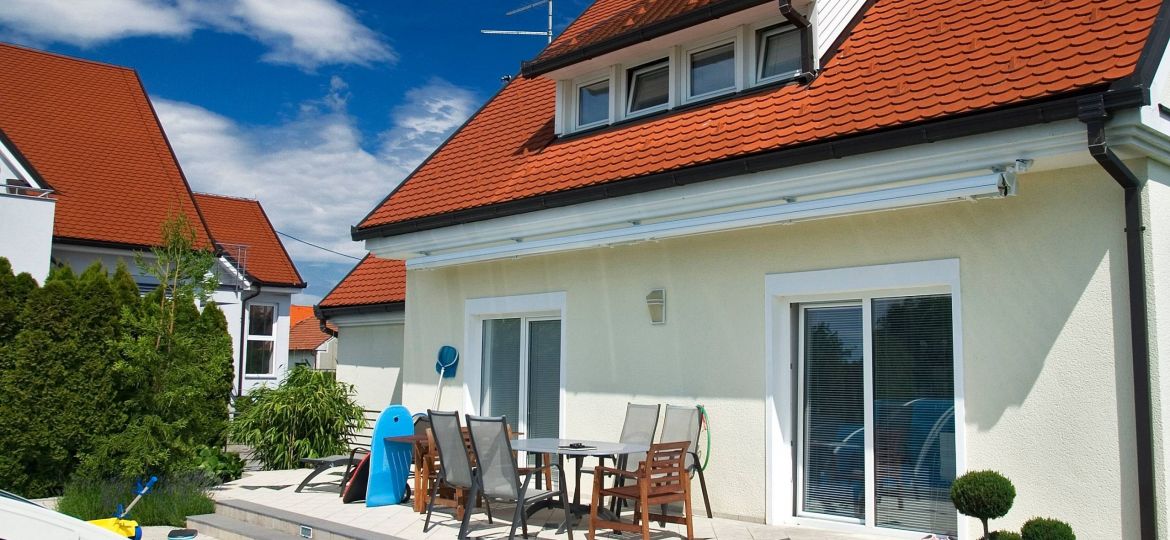

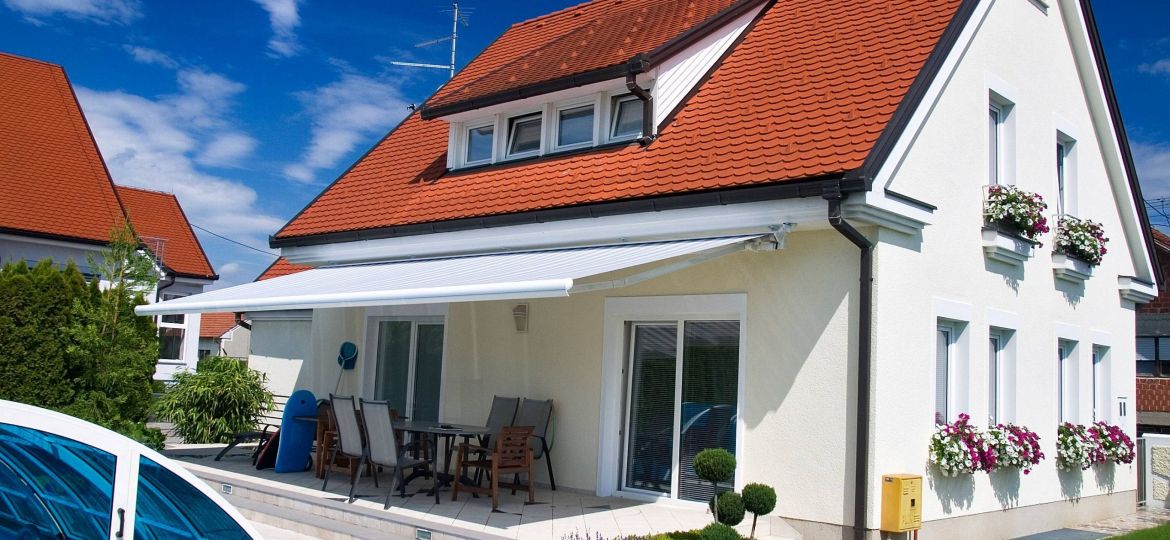

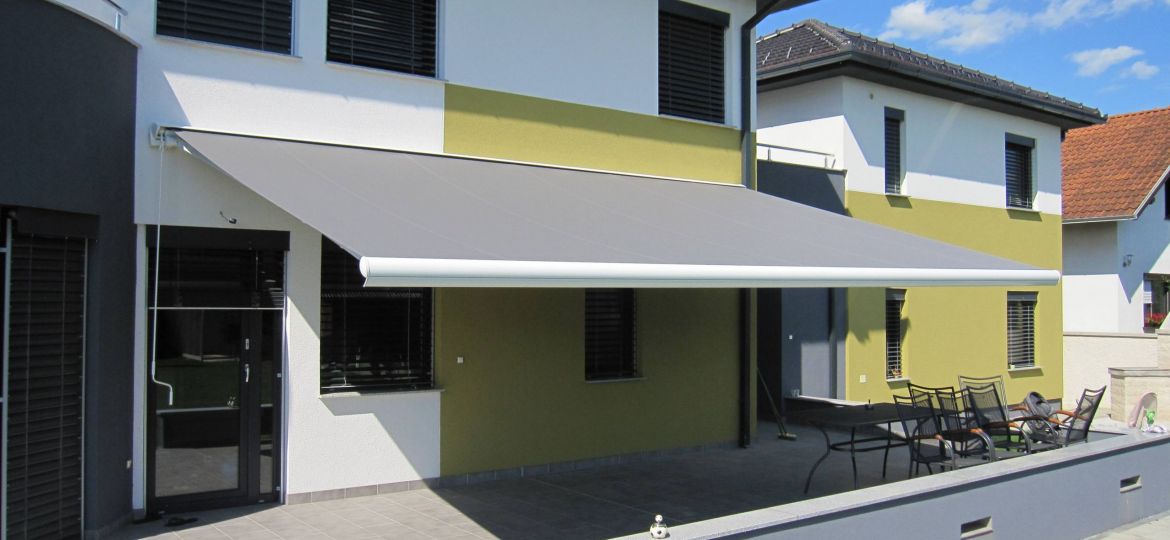

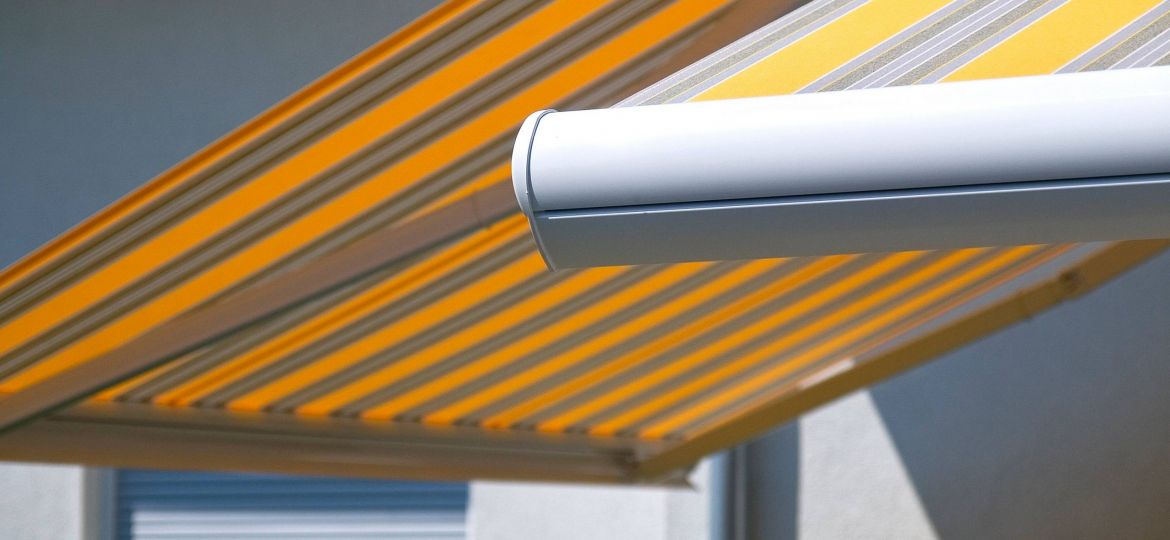

GALLERY
